Dumper Placers

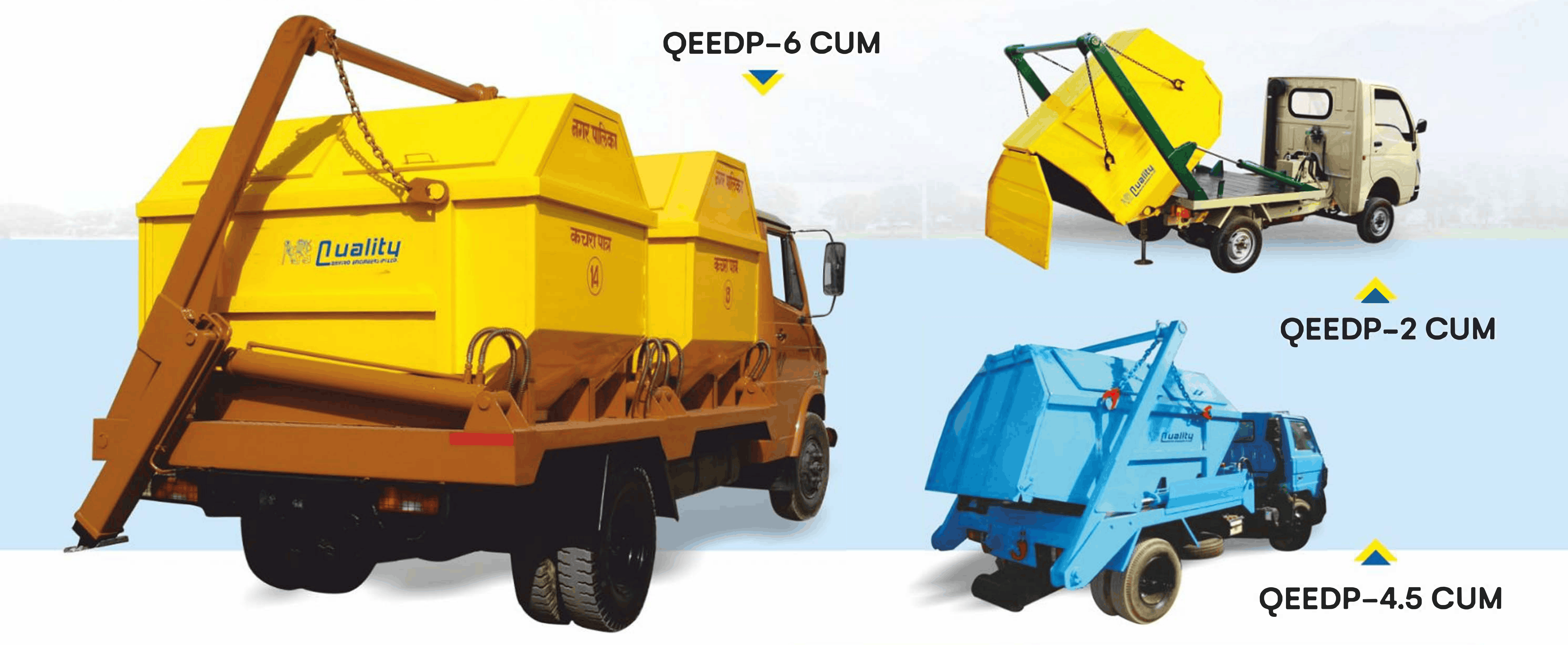

Dumper Placers (Model: - QEEDP-6CUM, QEEDP-2CUM, QEEDP-4.5 CUM)
Dumper Placer & Hopper Tipper Dumper is a modern and sophisticated design mini garbage collector. It is equipped with widest range of products that offers customers with best-in-class solution. It is easy to dump the garbage on ground with the use of this minivan. It adds with auto remover with garbage cleaning capacity. The dumping height with the ground to 1000 mm/ 1200 mm. It offers fast operation with reliability.
Advantages
- Carrying Waste Material containers of different sizes
- It is a unique, highly productive, easy operational and low maintenance, hygienic system to help in keeping a city clean.
- Better waste Handling Equipment vehicle in its range of products
- Heavy duty cylinders to carry heavy containers safely in very less time.
- Optimum loading supported by durable heavy-duty unloading.” hydraulic ability hoses, pumping system and safety devices like load holding valve, pressure & safety valve etc.
- Hydraulic arrangement for Lifting system with the help of Control lever for minimize the human efforts & time.
- Arrangement for stabilizing of vehicle with stabilizers for better Strength & Rigidity at the same time of heavy operation
- Suitable for Municipalities, Building Developments as well as Individual
Technical Data
| Chassis | From 2 Ton upto 16 Ton |
|---|---|
| Sheet Material | Steel (IS:2062) |
| Thickness | 5-6 mm |
| Lifting Size (m3) | 1. 8 m3 Upto 12 m3 |
| Hydraulic Cylinder | ISO Standard, Reputed Make |
| Hydraulic Pump | Inter Pump |
| Hydraulic Hoses | High Pressure Hoses |
| Power Take off | Suitable capacity for pump drive |
| Hydraulic Tank | 50 - 100 L / Suitable |
| Lifting System | Manual Type |
