Sewer Suction Machines
A - Sewer Suction Machine
B - Sewer Suction Cum Jetting Machine cum Recycler

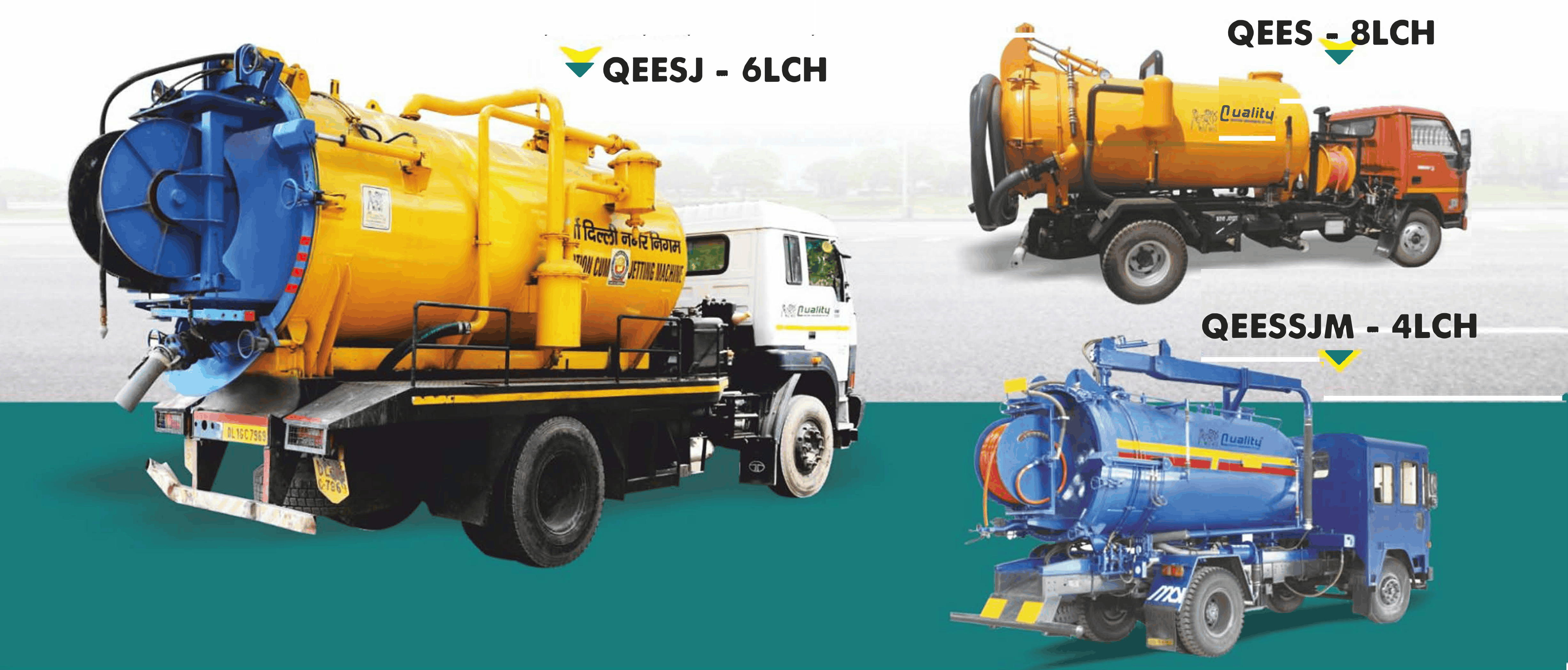

MODELS: - QEESJ-6LCH; QEES-8LCH; QEESSJM-4LCH
Sewer Suction Cum Jetting Machine Is Used For Cleaning Of Sewer Lines By Sucking Out The Dirt From Chamber Into Its Tank As Well As Clear The Blockage / Choke Of Sewer Lines By High Capacity Jetting Throw Of Liquid. They Are Being Manufactured With High Capacity Split Tanks, Jetting Pump, Vacuum Pump & Others With Highly Reliability, Superior Quality
Advantages
- Two separate tanks are provided i.e. one for fresh water and other for sludge
- This machine can carry out both the operations of suction as well as jetting.
- The operation is the same as that of individual High Pressure Jetting Machine and
- Individual Suction Machine with Blow Operation i.e. of Mui jet and Gully Man.
Technical Data
| Chassis | 7 Ton, 9 Ton, 12 Ton, 16 Ton, 25 Ton/trailer Etc. |
|---|---|
| Tank Size | 4000 L, 6000 L, (8-20 kL Or Customized Tanks) |
| Sheet Material | Mild Steel (IS:2062) |
| Thickness | 5 mm, 6 mm or As Per Requirement |
| Vacuum Pump | M/s Jurop, Italy / Battioni Pagani Italy |
| Jetting Pump | M/s Pratissoli, Italy / Equivalent Make ( 70 -260 LPM) |
| Hoses | Hose Heavy Duty (upto 5" & 15 Mtr) Jetting House High Pressure |
| Power Take Off | (upto 1 ¼" & 60 Mtr) Washing Hose With Gun (½"& 1 O Mtr) Optional Vas/eq. With Upto 400kgm Capacity Suitable Power Transfer |
| Hydraulic Cylinder | 1 Nos. For Tank Tipping & 2 Nos. For Door Opening Ratio To Drive Pumps |
| Hydraulic Pump | 60- 1 60 CC |
