Sky Lifts/ Hydraulic Access Platforms

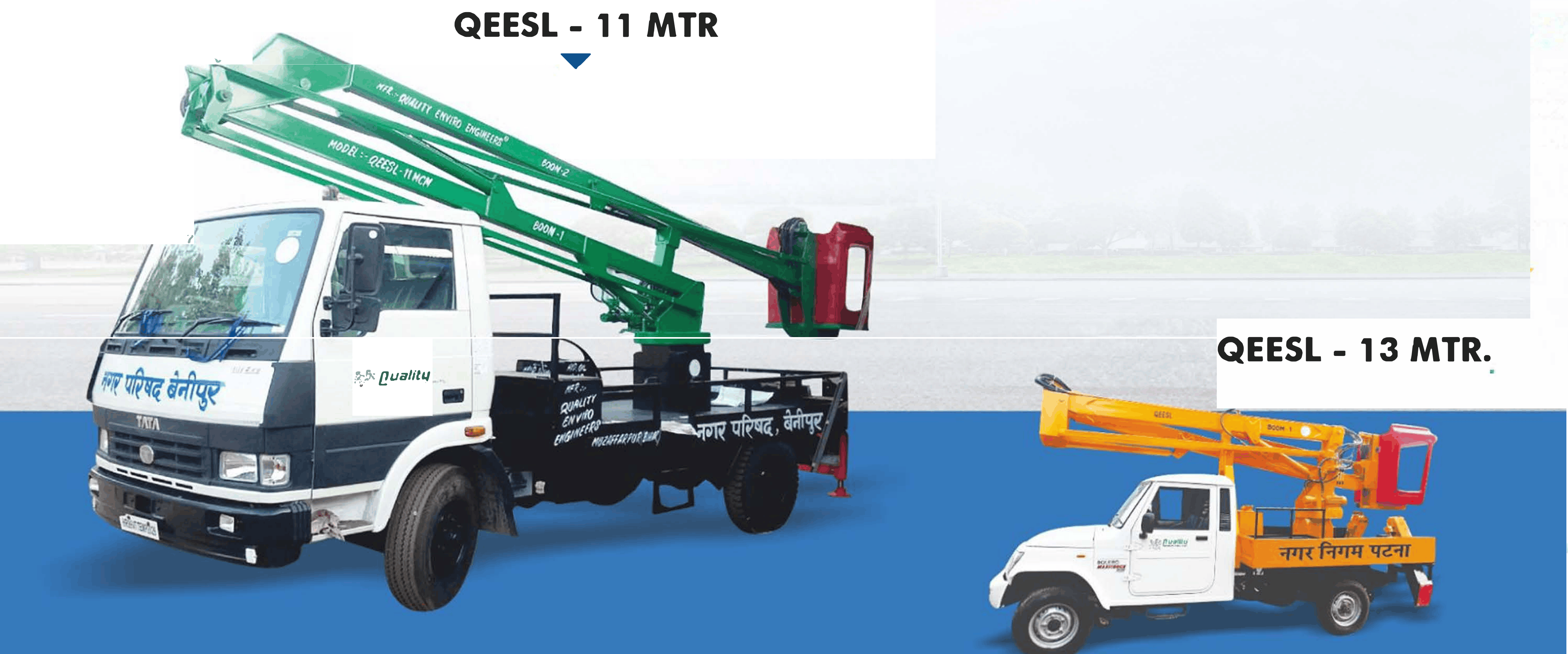

Sky Lifts/ Hydraulic Access Platforms (Model QEESL - 11 MTR, QEESL - 13 MTR. )
A sky lift is also known as automatic lifting machine for maintenance purposes in different sections such as municipal works, Highways, Building/Glass Cleaning & Constructions, Street Lights, Tree Pruning & Etc.
They are being manufactured with High Strength, Reliability, Superior Quality & Better utilization for its end use.
Advantages
- It's unique, easy operational, low mainte nance & Fool Proof system helps in keeping all operations safe.
- Safe load handling capacity upto 250Kg of FRP Bucket & Insulation of cage to minimize the accidents and make the operations easier.
- Heavy duty cylinders to carry bucket that is attached with Booms on a required height safely in very less time.
- Optimum Lifting & Lowering ability through heavy duty hydraulic cylinders, hoses, Motor, Pump and safety devices like pilot check valve, pressure relief valve, manual hydraulic pump etc.
- Hydraulic arrangement for system with the help of Control lever for minimize the lifting time.
- Arrangement for stabilizing of vehicle for better Strength at the time of operation.
TECHNICAL DATA
| Chassis | TATA/ LAYLAND/ EICHER/ Etc |
|---|---|
| Size Available | 7 / 9 / 11 / 14 / 16 Mtr Or Customized. |
| Sheet Material | High Tensile Steel |
| Thickness | 5mm - 6mm |
| Bucket | 600 Vatt Insulated Material with Single Person or Two Person. |
| Hydraulic Cylinder | Dantal / Johnson / QEEL |
| Hydraulic Pump | 20-80 LPM |
| Hydraulic Motor | 50-200 CCH High Pressure Hoses |
| Hydraulic Hoses | Parker / Gates / Semprit |
| Power Take Off | Suitable Power Transfer Ratio from Gear Box to Drive Shaft |
| Hydraulic Tank | 20 to 80 Litres |
| Swing | 360° |
